Careflow App Overview

Last Updated: June 15, 2026

The Careflow App is the extension layer of the Careflow platform.

It provides the tools needed to integrate third-party services with deployed models — handling consumption of outputs, control actions, and real-time data streaming.

The Careflow App is made up of three core components:

  • SDK – Developer toolkit for service integration.
  • App Server – Secure API layer that the SDK calls.
  • App Management – Credential and profile management tied to deployments.

Adjustment on Collection/Orchestrator

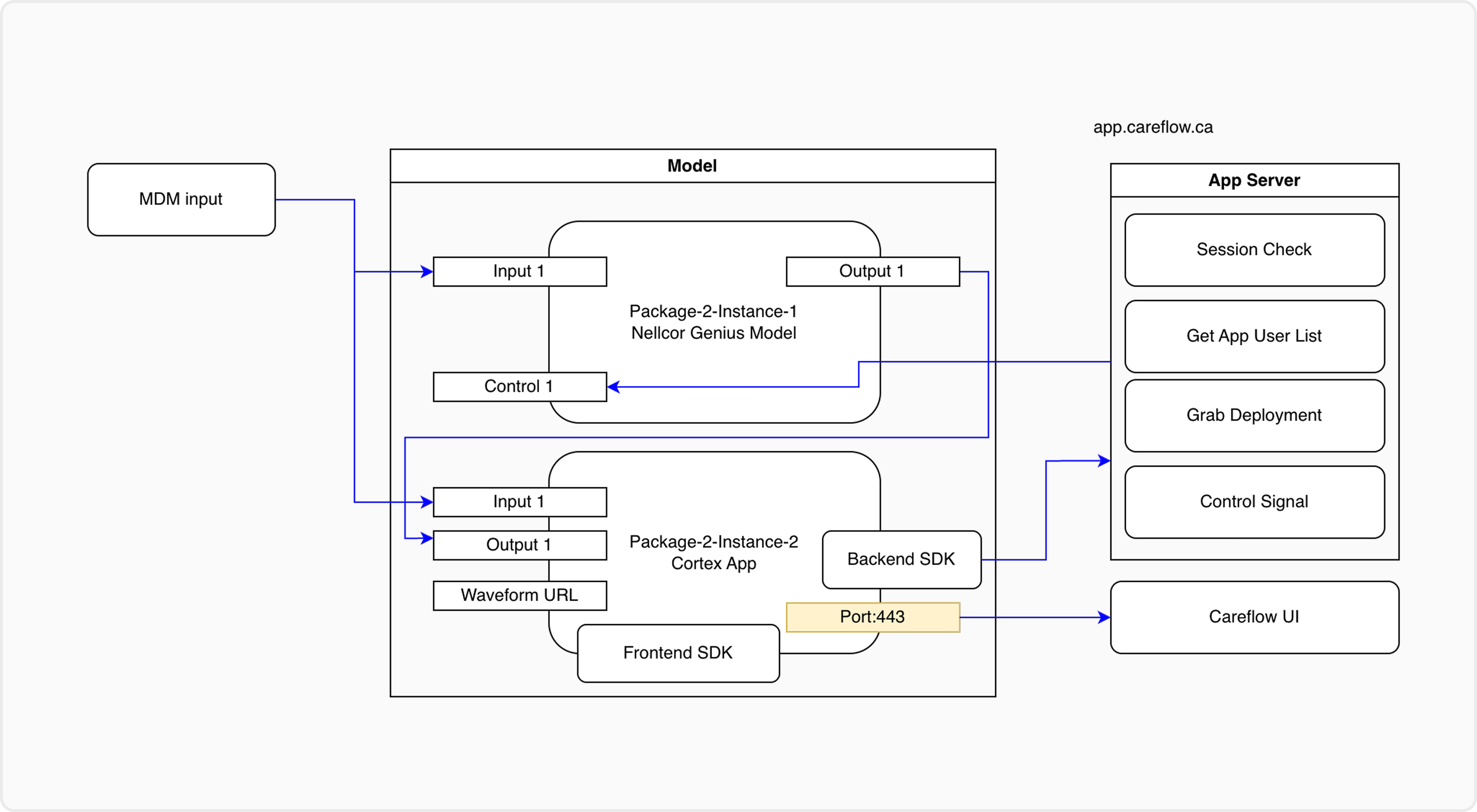

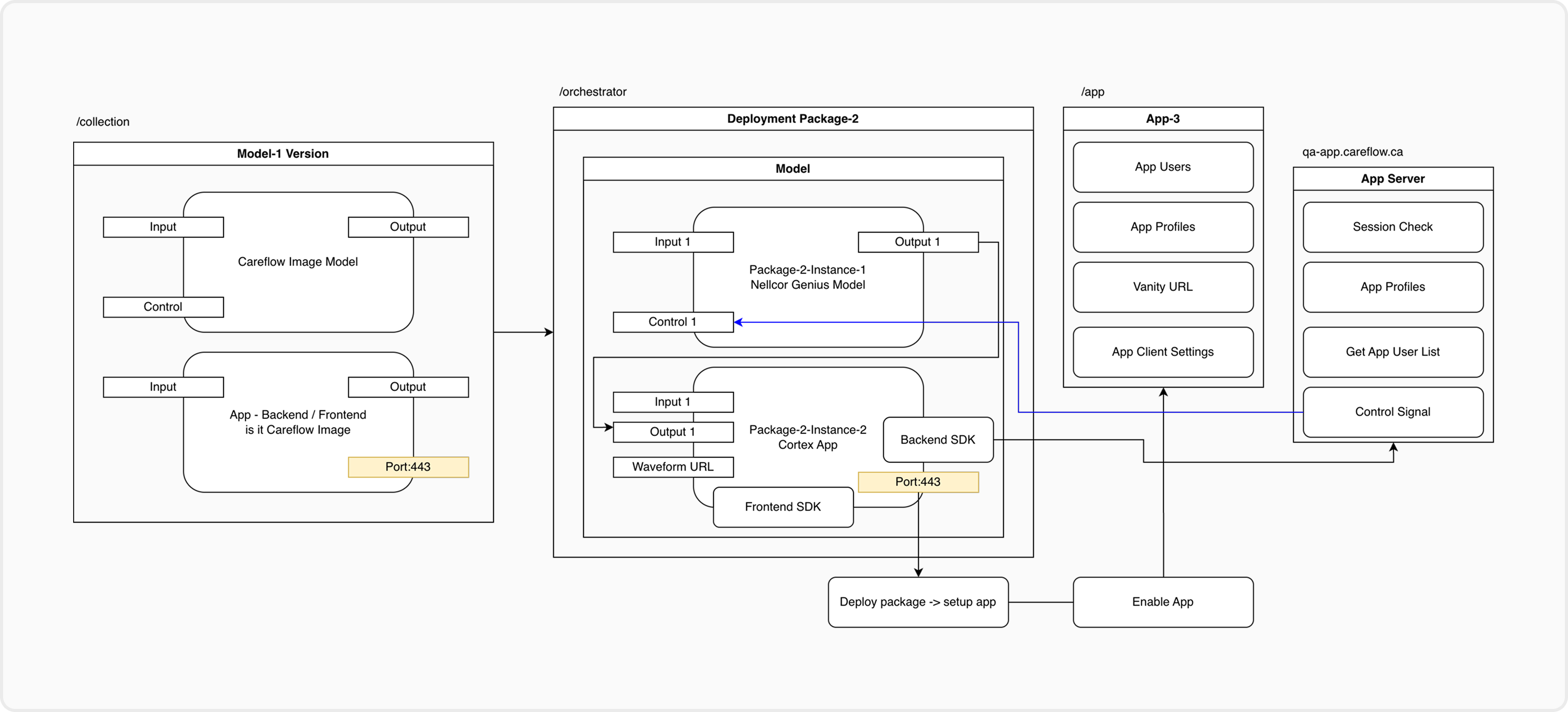

Careflow App Architecture

plaintext
Careflow Deployment → Careflow App
      |                    |
      |——> SDK (3rd-party integration toolkit)
      |——> App Server (secure API for SDK)
      |——> App Management (client ID/secret, profiles, app users)

Careflow login

Careflow login

Careflow login

Components

1. App Managment

App Management governs how Careflow Apps are provisioned, secured, and extended. It defines how credentials are issued, how App Users operate, and how App-specific routing and URLs are managed.

Key Features

App Lifecycle

  • Each App is created during Deployment when an Image enables App Access URL.
  • An App is always tied to a single deployment instance.

Credential Profiles

  • Each App has a single App ID.

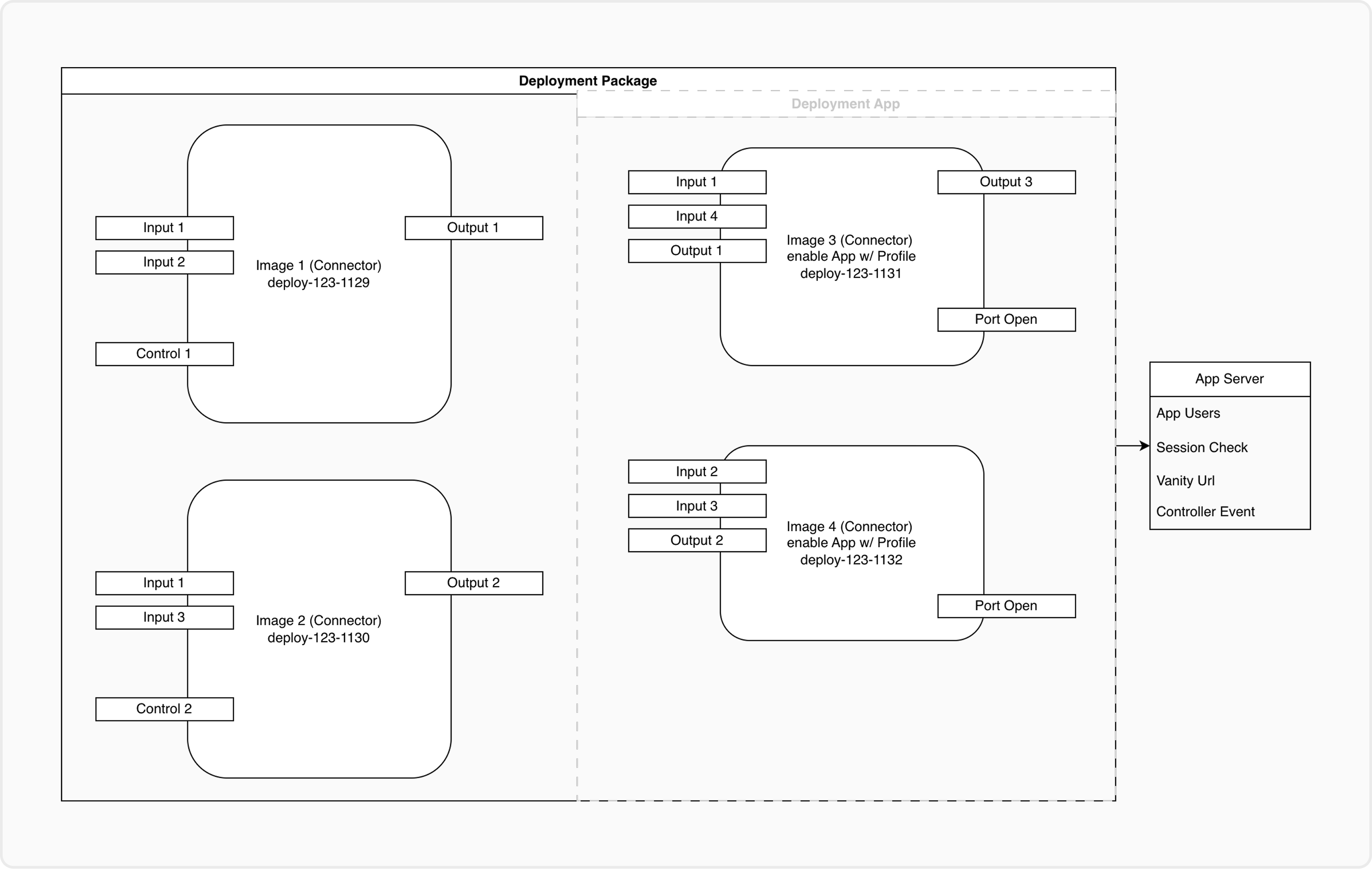

  • The App can generate multiple credential profiles (one for each image under the deployment), each containing its own profile secret.
  • All profile secrets under the same App ID are valid for authentication.
  • Profiles allow separation by image.
  • Each profile can be independently activated, rotated, or revoked without affecting others.

App Users

  • Each App maintains its own list of App Users.
  • App Users may access App-facing interfaces, perform user-driven actions, or participate in session validation.
  • App Management provides APIs for listing, and managing App User
  • App controller server provides API for retrieving app users and validating app user sessions.

Vanity URL Management

  • Each App supports vanity URL configuration, allowing custom, user-friendly URLs.
  • Vanity URLs are tied to the App instance and can reference App-rendered endpoints, dashboards, or UI elements.
  • Routing automatically maps vanity URLs to the underlying deployment resources.

App Server Integration

  • App Management stores all credential profiles used for HMAC-signed authentication.
  • The App Server retrieves credential profiles to validate incoming requests.
  • Multiple secrets mean multiple valid signers can authenticate simultaneously under the same App ID.
  • Routing, input/output topic visibility, and runtime behavior are managed per App.

Example

  • One deployment → One App.
  • The App issues multiple credential profiles → each profile has its own secret.
  • Each profile can support a different integration:
    • External partner
    • Internal batch job
    • Staging integration
    • Frontend widgets
  • Revoking one profile does not affect others.

2. App Server

The App Server is the backend service that the SDK talks to. It ensures secure and standardized communication.

Responsibilities

  • Authenticate SDK requests using App client ID and secret.
  • Expose REST endpoints for input/output retrieval.
  • Provide WebSocket URLs for streaming connections.
  • Relay control actions to the underlying deployment.
  • User session validation
  • App User List retrieval

Why it matters

  • Keeps deployments isolated from direct external calls.
  • Centralizes security and auditing of App interactions.

3. SDK

The SDK is the integration toolkit used by third-party developers to connect backend services or apps with Careflow.

Capabilities

  • Connect to the App Server with App credentials.
  • Retrieve model input/output through REST calls.
  • Subscribe to real-time results via WebSocket.
  • Send control signals (start, stop, configure).
  • Handle Careflow user login and redirection flows if required.

Developer Benefit

  • Simplifies implementation by abstracting API calls.
  • Provides ready-to-use authentication and streaming helpers.

Typical Workflow

  1. Deployment is created in Careflow.
  2. App Management provisions an App with credential profiles.
  3. Third-party developer uses SDK with the client ID/secret.
  4. SDK authenticates with App Server.
  5. SDK retrieves data/control endpoints or WebSocket streams.
  6. App consumes outputs or sends control to the deployment.
